　Air Brake Hose

Tube: NBR black, smooth, oil resistant
Reinforcement: textile braided high tensile synthetic yarn
Cover: black CR, OZONE and Abrasion resistant, smooth
Applications: for pneumatic air brake system, also suitable as hydraulic low pressure hose.
Temperature: -40°C + 100°C
Brading: as request
Length: as request
Packing: trans. P.V.C. film

ID (mm) ID (inch) Wall (mm) WP (bar) BP (bar) Radius (mm) Weight (kg/m)
10 3/8 4,5 10 60 30 0.32
13 1/2 4,5 10 60 40 0.38
16 5/8 5,5 10 60 55 0.53
SAE J1402, DIN 74310

ID (mm) ID (inch) Wall (mm) WP (bar) BP (bar) Radius (mm) Weight (kg/m)
10 3/8 4,5 10 60 30 0.32
13 1/2 4,5 10 60 40 0.38
BS AU 110

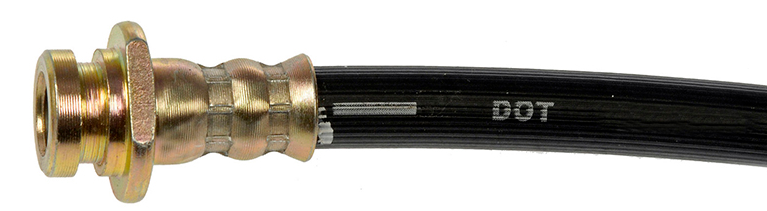

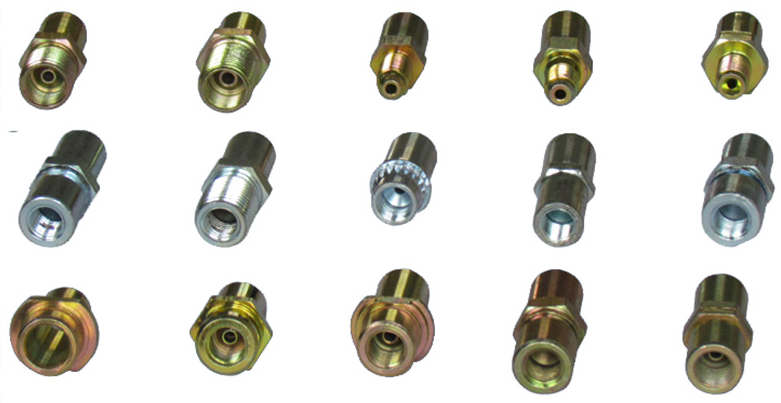

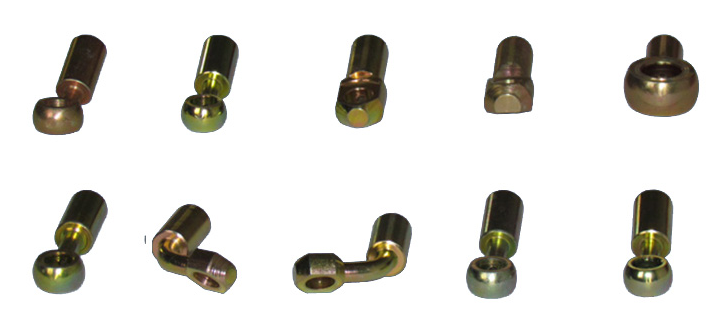

Brake hose assembly

HOME >

Brake Hose >

Air Brake Hose

ID (mm)	ID (inch)	Wall (mm)	WP (bar)	BP (bar)	Radius (mm)	Weight (kg/m)
10	3/8	4,5	10	60	30	0.32
13	1/2	4,5	10	60	40	0.38
16	5/8	5,5	10	60	55	0.53
SAE J1402, DIN 74310
